Product Overview

The LIV-ECO Advantage

Industrial-Grade Phase Governance: Solves the limitation of standard charging speeds by unlocking the full potential of 3-phase infrastructure. The EV-Connect™ Ultra-Fast is engineered for 22kW / 32A high-velocity power delivery. Operating at AC 480V, it provides the maximum AC charging rate available for home and commercial portable use, ensuring you gain peak range in the shortest possible window.

Thermal Resilience Architecture: Solves the critical failure point of generic high-power chargers, overheating. This system utilizes a premium 40A Hongfa relay, significantly over-specced for the 32A draw, and 5*6mm² solid square conductors. This industrial-gauge copper ensures cold-operation stability even during sustained 22kW sessions in the harsh Australian summer, preventing the internal burnout common in lower-spec 25A relays.

Tactical Weatherproof Shielding: Solves the vulnerability of high-voltage electronics to the Australian elements. The charging gun is IP67 rated, fully submersible and dustproof, while the cable is protected by a heavy-duty TPU outer sheath and a UL94-V0 flame-retardant nylon plug reinforced with glass fiber. This clinical level of sealing ensures your energy infrastructure remains operational through torrential rain and extreme UV exposure.

Universal Euro-Standard Connectivity: Solves the frustration of inconsistent socket compatibility. Featuring a dual-head Type 2 to Type 2 design that adheres to strict European and Australian standards, CE/RCM, this 5-meter cable provides seamless connectivity for every Type 2 EV on the market. From Tesla and Polestar to Hyundai and BMW, it governs your power supply with precision and reliability.

Eco Benefits: The LIV-ECO Commitment

AU-Stocked & Vetted | Ultra-Efficiency | Built to Last | Solar-Ready | Zero-Waste Catalyst

At LIV-ECO, we believe that high-performance mobility should never come at the cost of the planet. The EV-Connect™ Portable 22kW Ultra-Fast Charger is our heartfelt brand promise to provide the most resilient, high-capacity energy bridge for your vehicle, making you feel proud to support a boutique that values industrial-grade durability and the Australian environment.

Our Heartfelt Promise: Every EV-Connect™ unit is AU-Stocked & Vetted, held in our local Australian facilities to ensure your journey toward a zero-emissions future begins with a smaller carbon footprint. By sourcing and shipping locally, we choose to honor our land, reducing transit emissions and ensuring your premium ultra-fast charger arrives with the localized certification and reliability that only a local boutique can guarantee.

The Resilience Vow: We chose this 22kW system because it represents a commitment to Built to Last engineering. By utilizing 5*6mm² copper conductors and high-spec 40A relays, we prevent the premature burnout that leads to electronic waste, acting as a true Zero-Waste Catalyst. As a Solar-Ready asset, it allows you to harvest your home’s solar energy with Ultra-Efficiency, giving you the power to drive on pure sunlight while keeping your ecological footprint light and your air truly pristine.

Important Safety Warning

Electrical Requirements: This is a high-performance 22kW 3-phase charger. To achieve the full 22kW speed, it must be connected to a compatible 32A / 3-phase outlet, 480V. It is essential to ensure your home or facility's wiring is rated for this sustained high-amperage draw.

Inspection Protocol: Always inspect the cable and connectors before each use for signs of wear, moisture, or debris. Do not use the cable if there are any visible defects or if the protective TPU sheath is compromised.

Water Safety: While the gun is IP67 rated, for maximum safety, avoid leaving the control box or connections sitting in standing water or deep puddles during active charging sessions.

Storage: After charging is complete, unclip the connection and store the cable neatly in its case. Avoid exposing the unit to extreme temperature environments when not in use to extend the lifespan of the glass-fiber reinforced nylon components.

Technical Data & Specifications

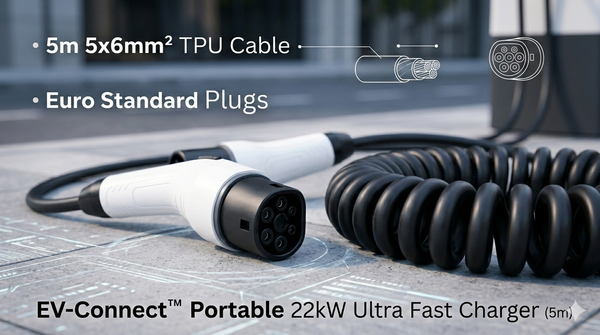

Model: ST-E250, EV-Connect™ Ultra-Fast
Charging Speed: 22kW, 3-Phase
Current Rating: 32 Amps
Voltage Rating: AC 480V
Connector Type: Type 2, M to Type 2, F, Dual Head Euro Standard
Cable Specifications: 5*6mm² + 0.5mm² Solid Square Conductor
Outer Diameter: 16.5mm
Length: 5 Metres
Material: TPU Outer Sheath | Nylon with Glass Fiber Plug, UL94-V0 Flame Retardant
Waterproofing: IP67, Gun | IP65, Control Box
Internal Safety: 40A Hongfa Relay, Burnout Protection
Certifications: CE / RCM Certified, Full Australian Compliance
Warranty: 2 Years

Box Contents

1 x EV-Connect™ Portable 22kW Ultra-Fast Charger, 5m
1 x Integrated 32A Type 2 Charging Gun
1 x Technical User Manual & Setup Guide
